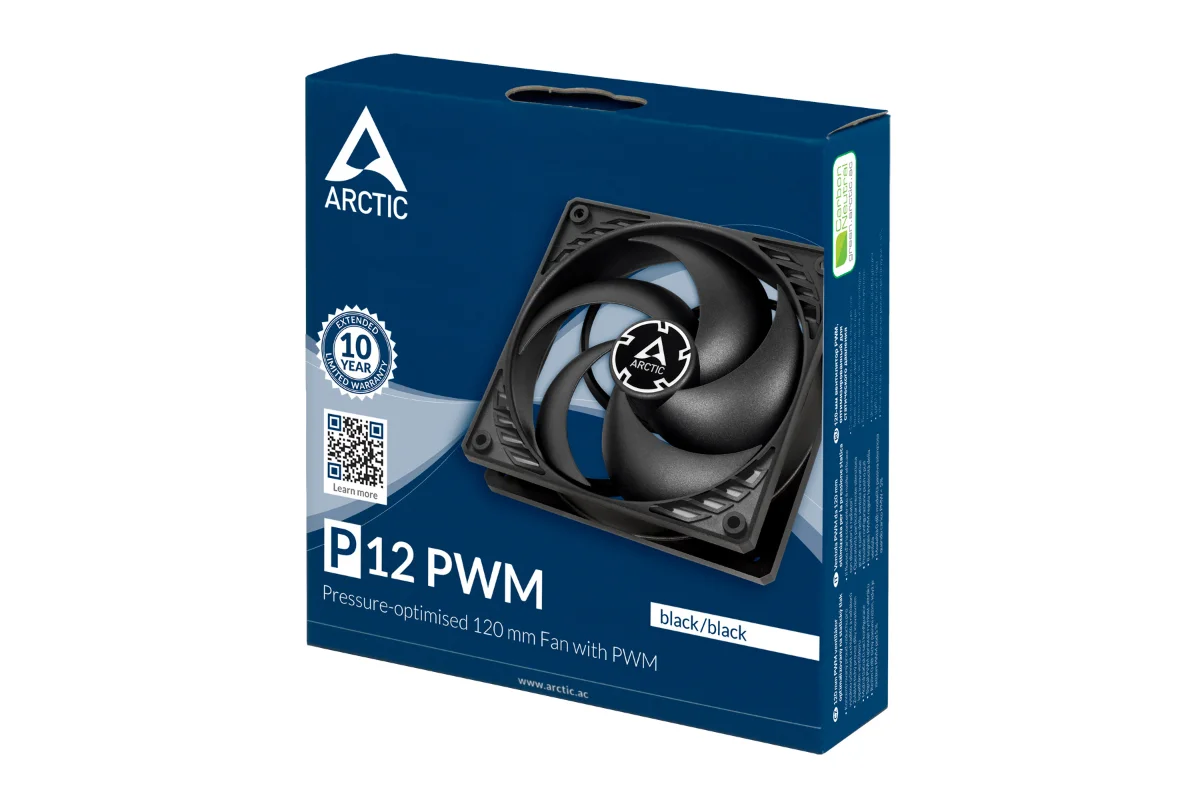

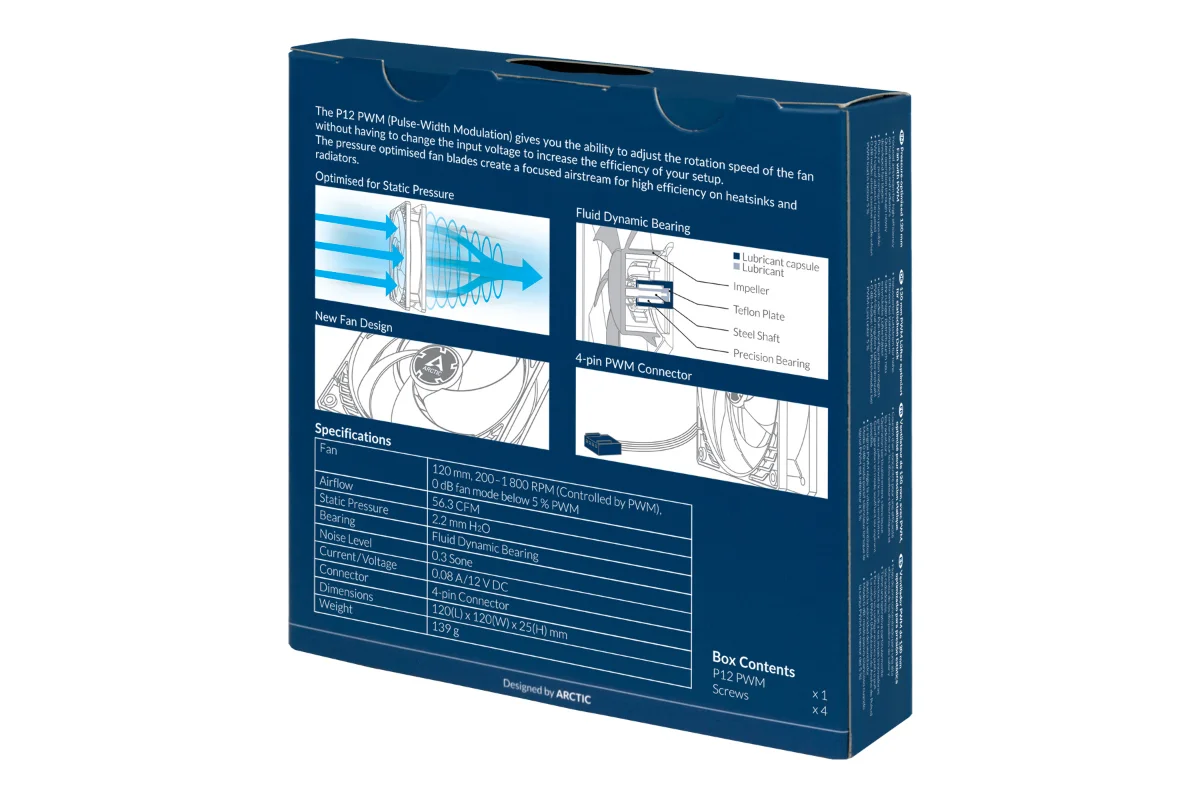

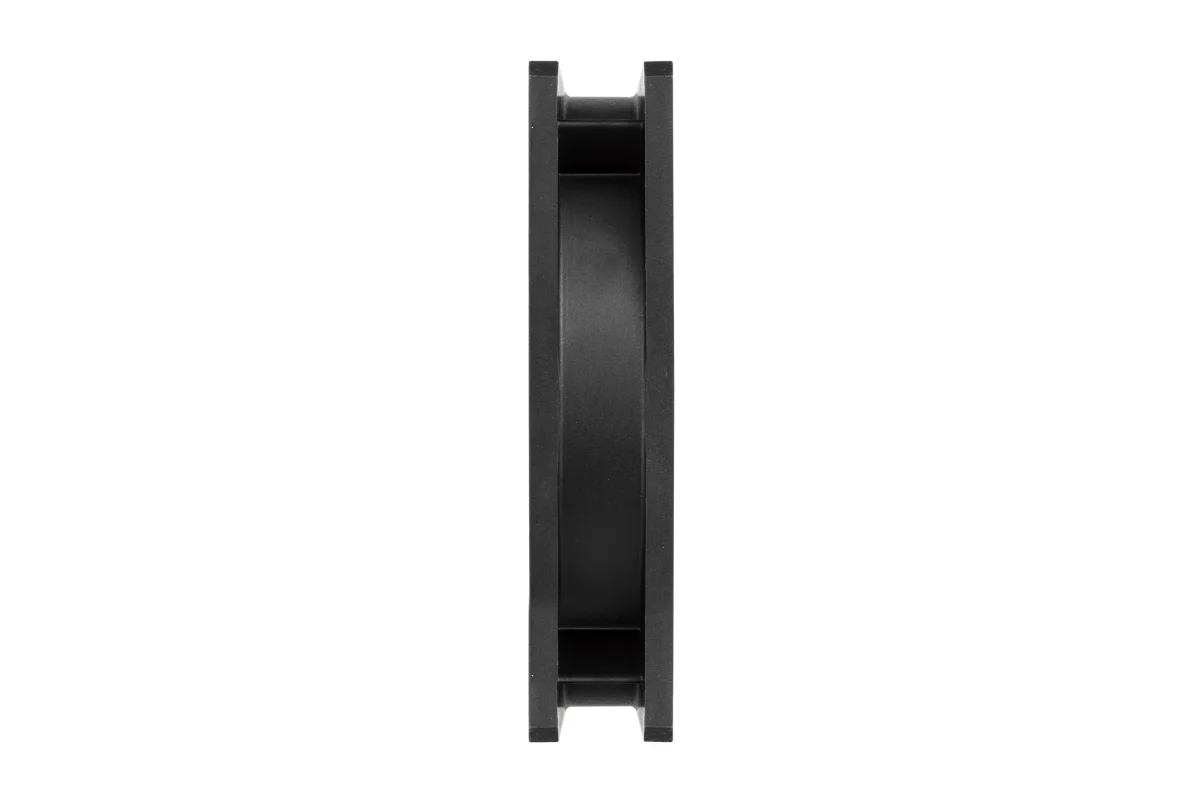

Arctic P12 PWM case fan (120x120x25mm) – Black 12V DC
$9.99
When developing the new P12 PWM, the focus was on the focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling even with increased air resistance. The P12 PWM is therefore particularly qualified for use on heat sinks, radiators, pinholes and filters.
Technische Details
In stock
When developing the new P12 PWM, the focus was on the focused airflow and a high static pressure. The fan thus guarantees extremely efficient cooling even with increased air resistance. The P12 PWM is therefore particularly qualified for use on heat sinks, radiators, pinholes and filters.
Technische Details
Performance
Fan: 120 mm, 200 – 1.800 RPM (Controlled by PWM)
Air Flow: 56.3 CFM / 95.65 m³/h (@ 1.800 RPM)
Noise Level: 0.3 Sone (@ 1.800 RPM)
Static Pressure: 2.2 mm H2O (@ 1.800 RPM)
Electrical Characteristics
Typical Voltage: + 12 V DC
Start-up Voltage: 3.9 V
Cable Length: 400 mm
Voltage                Current
12 V DC (Norminal)Â Â Â Â Â Â Â 0.08 A
Connection
Motherboard: + 12 V DC
PWM control signal
4-pin socket
| Rated speed range: | 1500 – 1950 U/min |
| manufacturer: | Arctic |
| manufacturer: | China |
| Air conveying area: | 50 – 99 m³/h |
| Airflow: | 95,65 m³/h |
| pressure: | 2,20mm H2O |
| Color Frame: | Black; |
| Rated speed: | 1800 U/min |
| Colour rotor: | Black; |
| nominal voltage: | 12V DC |
| Size: | 120mm |
| Volume: | 0,3 Sone |
| RPM signal transmission: | Yes |
| Volume range: | 20 – 29,9 dB(A) |
| starting voltage: | 3,9V |
| power connection: | 4-pin; |
| Dimensions: | 120 x 120 x 25mm |
| Weight | 0.375 lbs |
|---|---|
| Dimensions | 8.5 × 5.5 × 0.75 in |
| Fan Size | 120mm |
| Lighting Type | No lighting |
