Splitty9 is a universal ninefold splitter and can be used for 3-pin fans, 4-pin PWM fans or as an aquabus splitter.

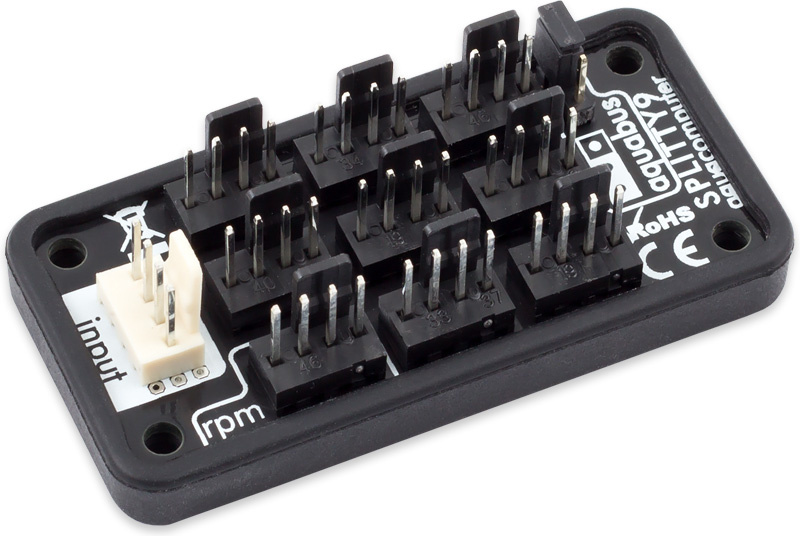

When used with a fan output, the white connector marked with the word “input” is connected to a fan output using the supplied cable. Power supply and PWM signal (if available) are provided to all nine black connectors, additionally the speed signal received from the connector marked “rpm” is forwarded to the fan output.
When used as aquabus splitter, the white connector marked with the word “input” is connected to the aquabus connector of an aquaero using the supplied cable. By setting the jumper to the “aquabus” position, all four aquabus signal lines are forwarded to all black connectors. The splitter can be used for 4-pin as well as 3-pin aquabus devices.
A self-adhesive hook-and-loop strip is included for easy installation, alternatively four mounting holes can be used.
Maximum current: 5 A
Dimensions: ca. 60 x 28 x 15 mm

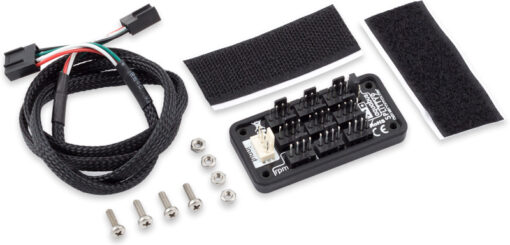

Scope of delivery:
One splitter
One 4-pin cable, total length 70 cm
Self-adhesive hook-and-loop fastening strip
Mounting material
| Weight | .375 lbs |
|---|---|
| Dimensions | 6 × 4 × 2 in |
| Hub Type | Fan |
Brand
Aqua Computer
Aqua Computer
Aqua Computer is one of the world’s best known and most technologically advanced manufacturers of water cooling systems for PCs. We offer you sophisticated cooling systems that enable almost silent cooling of your PC. All Aqua Computer products are developed and manufactured in Germany. Most products are produced entirely in our own factory. All products are developed exclusively by Aqua Computer. Our products meet the highest quality requirements. We believe that all core competencies should be located directly in our own company. Therefore, the mechanical production of metal and plastic components of all kinds as well as the development of electronic components are part of our company and are not carried out by third parties. This includes the complete development of electronic controls from circuit board layout to firmware programming and application programming. As well as, of course, the production of prototypes and samples. Aqua Computer has extensive manufacturing capacities for metal and plastic processing. This includes CNC laser cutting with high-performance CO2 lasers , CNC milling, turning and grinding. In addition, with our NdYAG engraving laser, we are able to provide almost all materials with high-quality laser engravings. Other surface finishing options such as grinding and polishing round off our capabilities. For further tasks such as high-quality powder coating or anodizing, we work with efficient German partners.
